Bridge Protection System

Gabions can be used in various ways to stabilize the soil around bridges, including the slopes of bridge piers and abutments. Generally speaking, a standard geogrid retaining wall is required for slopes with an angle of 1:1 or steeper, while geogrid or Reno mattress can be used for slopes with an angle of 1:1.5 or less.




A Reno mattress is a rectangularly shaped basket made of a double-twist hexagonal weave galvanized steel wire mesh. The internal partitions of the Reno mattress are designed to form equal-sized compartments or cells within the mattress, ensuring that the stone fill remains evenly distributed throughout the entire mattress even after structural movement. This ensures that the Reno mattress remains in close contact with the underlying soil.

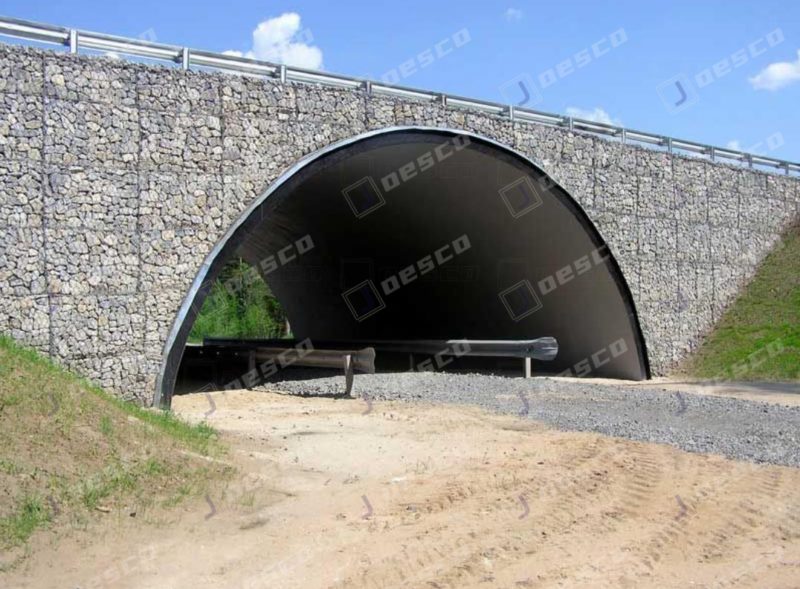

gabion 20230906175738 e1694075443750

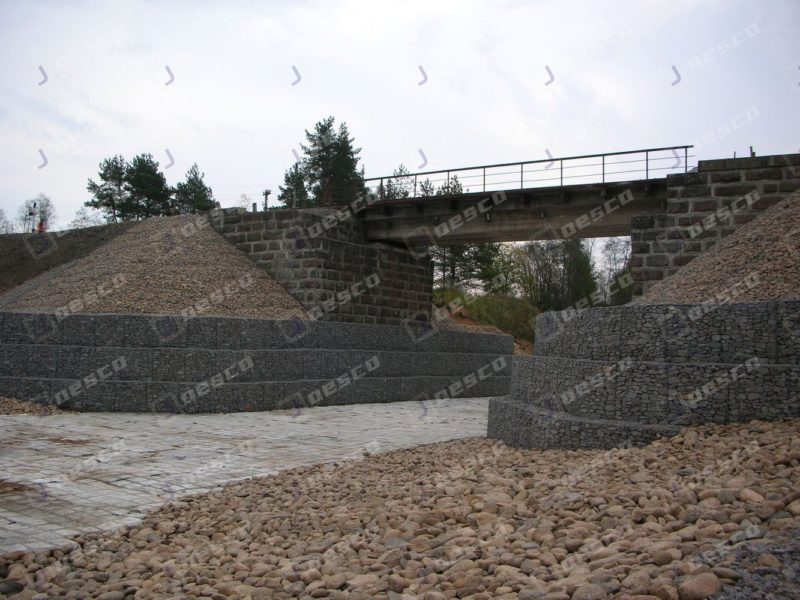

gabion bridge protection e1694075527110

The main features of a bridge protection system include:

1. Good adaptability: it can adapt to the deformation of the foundation.
2. High flexibility: it is not easy to crack and can bear loads without collapsing over a large range of deformations.
3. Permeable and impermeable properties: it can prevent damage caused by liquid hydrostatic pressure.
4. Resistance to corrosion and abrasion: it has high resistance to natural damage, severe weather, earthquakes, and impact.

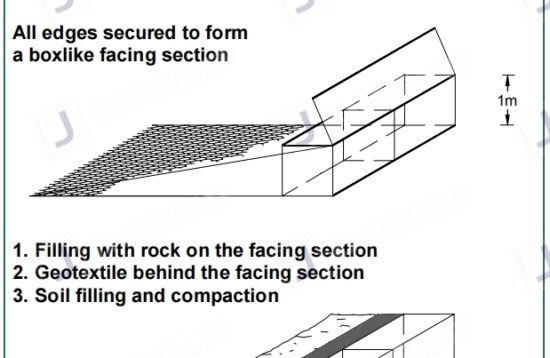

Terramesh system installation guide

Material Delivery Terramesh System units are supplied in a collapsed form, folded and bundled. The bundles are compressed and strapped together at the factory for easy shipping and
