Material Delivery Reinforced EcoLogs are cylindrical biodegradable rolls lined with BioMac coir blanket, bound together with twine, and lined with hexagonal woven mesh made of galvanized PVC coated wire(Figure 1). Reinforced EcoLogs are manufactured with all components mechanically connected at the production facility. The bundles are compressed and strapped together at the factory for easy shipping and handling. Lacing wire i

Fixing patterns will vary depending on application type, slope length, slope grade, soil type, and annual rainfall. The fixing patterns shown above are based on slope length and slope grade. Increased fixing rates may be necessary depending on site conditions. Peg types are shown in Figure 3. MacPeg 200 mm and 300 mm in length to cater to different soil conditions are available from Zhengyang. For detailed specific recommendat

Material Delivery FlexMesh is manufactured from hexagonal woven wire with a transverse rod woven into the mesh at approximately 160mm intervals and lined on one side with a pre-attached non-woven double needle punched geotextile for separation (Figure 1).FlexMesh is supplied in roll form from the production facility in lengths of 25 m and 50 m. The roll dimension varies depending on the width and length of FlexMesh. The rolls

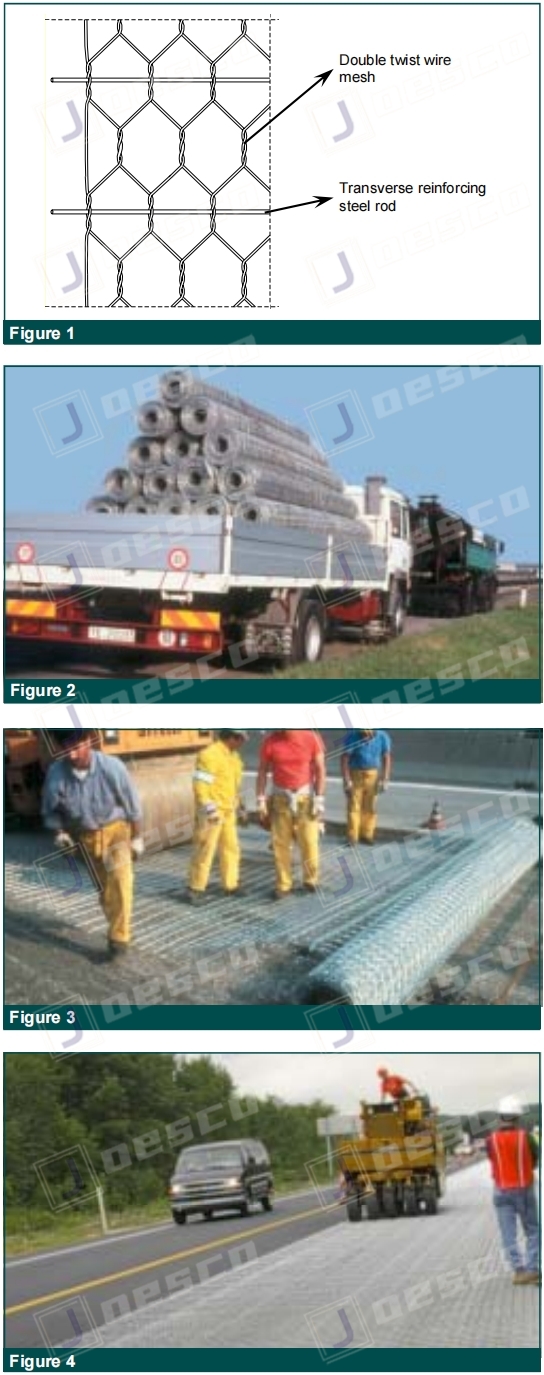

Material Delivery Road Mesh is manufactured from hexagonal woven wire with a transverse rod woven into the mesh at 160 mm intervals (Figure 1). Road Mesh is supplied in roll form from the production facility in lengths of 25 m and 50 m (Figure 2). The roll dimension varies depending on the width and length of the Road Mesh. The rolls are individually strapped at the factory for easy shipping and handling. Fasteners in the form

  Material Delivery Double twist mesh rolls are supplied in roll form from the production facility in lengths of 25 m and 50 m. The roll dimension varies depending on the width and length of the roll required and whether the woven wire has the additional PVC coating. The rolls are individually strapped at the factory for easy handling and transporting. Soil nails, anchors accessories, etc., and installation equipment in the fo

Material Delivery Sack Gabions are manufactured with all components mechanically connected at the production facility. All Sack Gabions are supplied in the collapsed form, folded and bundled. The bundles are compressed and strapped together at the factory for easy shipping and handling. Lacing wire is supplied in coils. Ring fasteners(Figure 5) are shipped in boxes that must be stored in a dry environment. Assembly The folded
