1. Engineering Structure & Anti-Corrosion Technology
Double-Twisted Hexagonal Mesh
- Anti-Unraveling Design: Double-twist weaving prevents mesh disintegration when wires are damaged.
- Ground Adaptability: Withstands 15% uneven ground settlement for soft soils and flood zones.
Zinc Coating Specifications
| Wire Diameter (mm) | Zinc Coating (g/m²) | Service Life |
|---|---|---|
| 2.0-3.9 | 215-275 | 50+ years |
- Compliance: ASTM A641 Class 3 / EN 10244-2.
- Enhanced Options: Galfan coating or PVC cladding for seawater environments.

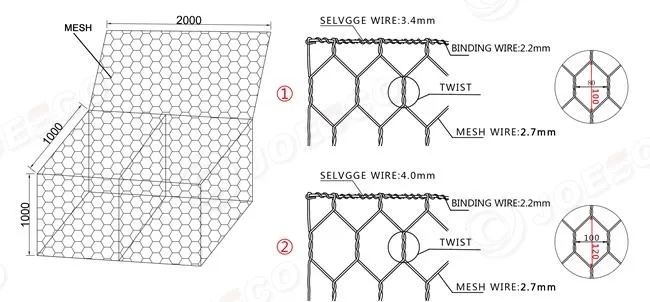

2. Technical Specifications
| Parameter | Value |
|---|---|
| Mesh Aperture | 80×100mm / 100×120mm |
| Unit Size | 2m×1m×1m (custom 0.5-4m length) |
| Internal Diaphragms | 0-3 partitions |
| Compressive Strength | 35kN/m² (granite-filled) |
Note: Diaphragm spacing at 1m intervals optimizes stone stability.
3. Flood Control Applications
- Riverbank Walls: Reduces soil erosion under 6m/s water flow.
- Coastal Breakwaters: Triple anti-corrosion resists salt spray.
- Rockfall Barriers: 4.0mm wire supports 25 tons/m² impact.
- Erosion Control: 3×2×0.17m mattresses prevent slope soil loss.
4. Competitive Advantages
| Feature | This Product | Standard Welded Gabions |
|---|---|---|
| Structural Toughness | Anti-deformation double-twist | Weld points prone to break |
| Installation | No tension adjustment needed | Requires professional tools |
| Cost Efficiency | $1.1-2.8/m² (bulk) | $3.5+/m² |
