Technical Field Log: Innsbruck, Austria
- Location Point: High-speed transit corridor, south slope marker
- The Threat: Heavy summer cloudbursts sent mud-choked water sheeting down a 35-degree rail subgrade.
Core Specifications & Layout
Instead of uniform blocks, this layout used tailored, low-profile wire blankets to line the hill slope smoothly.
Mesh Core: Double-twisted hexagonal steel wire. This layout guarantees that if an isolated wire snaps from a rock impact, the remaining mesh grid stays locked together without unravelling.
Anti-Rust Treatment: Wires are manufactured as Galfan coated gabion baskets and mats, mixing 95% zinc with 5% aluminum to secure a functional life exceeding 50 years in wet mountain soil.
Contractor Installation Process
The site installation bypassed heavy machinery delays:
1.Preparation: The loose hillside mud was trimmed and covered with standard geotextile cloth to stop fine soil from migrating out.
2.Assembly: Flat-packed wire units were opened on-site and linked corner-to-corner using pneumatic hog-ring lacing tools.
3.Filling: Workers utilized small mechanical excavators to dump local 100mm gray limestone directly into the cells. Lids were clipped tight in one continuous shift.
This direct pipeline saved the contractor 30% in general labor costs and eliminated all concrete drying wait-times.
Verification after 4 Years
Recent site reviews show total hillside immobility.
Native grass and alpine shrubs have grown completely through the limestone stone gaps, binding the metal grid naturally to the hill.

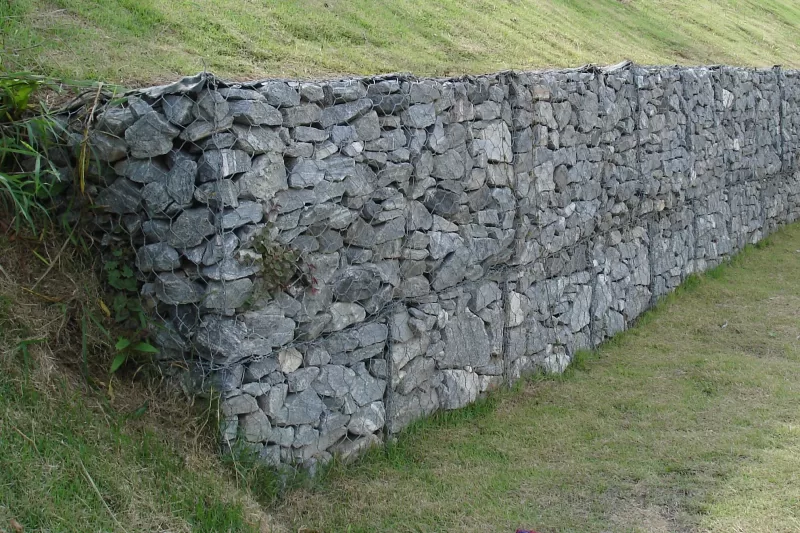

The Slope protection gabion mats design successfully passed consecutive storm seasons with zero rock displacement, proving its everyday value for rail contractors.
