Full Product Description
1. Core Design & Material Specifications

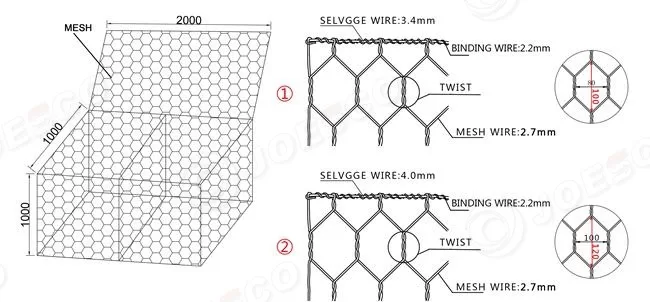

- Hexagonal Mesh Structure: Double-twisted low-carbon steel wire (2.0–4.0mm) for superior tensile strength and flexibility.
- Corrosion Resistance: Triple-layered protection:
- Base Layer: 215–275 g/m² zinc coating (minimum ASTM standard).
- Advanced Options: Galfan® (Zn-5%Al-RE alloy) or PVC coating (adds 1.0mm thickness) for harsh environments.
- Reinforced Edges: Edge wires 0.5–1.0mm thicker than mesh wires, with double-twist joints to prevent damage.
2. Technical Parameters
| Wire Diameter (mm) | Tolerance (mm) | Min. Zinc Coating (g/m²) |
|---|---|---|
| 2.0–3.9 | ±0.05–0.07 | 215–275 |
3. Product Specifications
- Mesh Sizes: 80×100mm or 100×120mm (±16% tolerance).
- Standard Dimensions (L×W×H, meters):
- Small Units: 1.5×1×0.5 | 1.5×1×1 (0–1 diaphragm)
- Large Units: 3×1×0.5 | 4×1×1 (0–3 diaphragms).
- Stone Fill: Clean, hard stones (100–200mm diameter).
4. Engineering Applications
- Structural Reinforcement: Retaining walls, bridge abutments, and dam foundations.

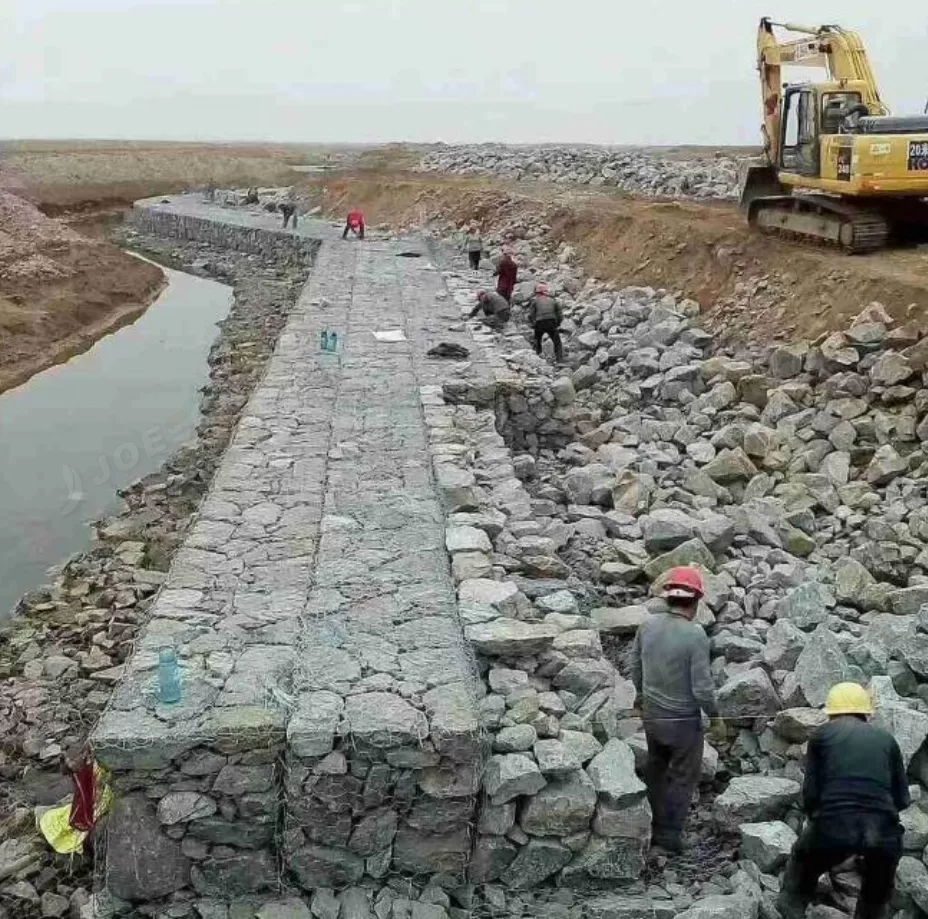

- Erosion Defense: Riverbank revetments, coastal barriers, highway slope stabilization.
- Ecological Solutions: Promotes vegetation growth and sediment retention.
5. Key Advantages
- Fast Installation: Pre-assembled, foldable designs.
- 50-Year Lifespan: Advanced coatings resist corrosion.
- Sustainable: Recyclable materials, native stone fill.
