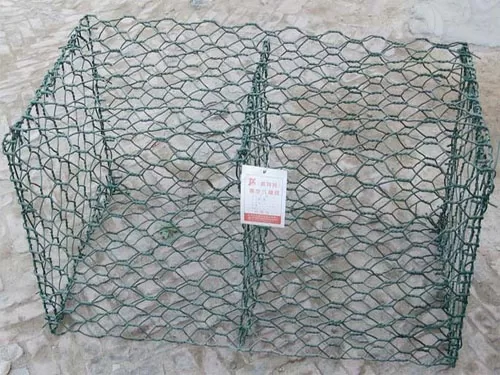

Dark Green PVC-Coated Hexagonal Gabion Baskets (2.7mm Wire) for Erosion Control​

​ISO-Certified Structural Solution with 30+ Year Lifespan​

​1. Enhanced Corrosion Resistance & Structural Design​

  • ​Triple-Layer Protection​​:
    • ase Material: Galvanized steel wire (core wire diameter: 2.7mm ±0.06mm tolerance)
    • oating: Dark green PVC layer (0.8–1.0mm thickness), providing UV stability and saltwater resistance
    • ​Lifespan​​: 30+ years in coastal environments, exceeding standard galvanized gabions by 2×
  • ​Mesh Technology​​:
    • ouble-twisted hexagonal weave (aperture: 80×100mm or 100×120mm, +16%/-4% tolerance) prevents unraveling under stress
    • ensile strength: 350–500 N/mm² (ASTM A975-97 compliant)

​2. Technical Specifications​

​Parameter​​Value​
​Wire Diameter​2.7mm core (PVC-coated outer: 3.7mm)
​Zinc Coating​245 g/m² min. (G90 standard)
​Mesh Aperture​80×100mm, 100×120mm
​Unit Dimensions​1.5–4m (L) × 0.5–1m (W) × 0.5–1m (H)
​Diaphragms​0–3 partitions (1m spacing)
​Stone Fill Size​100–200mm granite (35kN/m² compressive)

​Note​​: Selvedge wire (3.4mm) and lacing wire (2.2mm) included. Custom heights up to 3m available

Dark Green PVC-Coated Hexagonal Gabion Baskets (2.7mm Wire) for Erosion Control​
Dark Green PVC-Coated Hexagonal Gabion Baskets (2.7mm Wire) for Erosion Control​

​3. Critical Applications​

  • ​Coastal Defense​​: Wave dissipation in seawalls (saltwater corrosion resistance validated for marine zones)
  • ​Riverbank Stabilization​​: Controls erosion under 6m/s currents; permeable design reduces hydrostatic pressure
  • ​Infrastructure Protection​​:
    • ridge piers: 2×1×0.5m units wrap foundations against scouring
    • road embankments: Slope stabilization with 3m-high stacked baskets
  • ​Ecological Integration​​: Promotes vegetation growth through stone voids (soil retention >85%)
    Double-Twisted PVC Coated Green Gabion Baskets
    Double-Twisted PVC Coated Green Gabion Baskets

​4. Competitive Advantages vs. Alternatives​

​Feature​​This Product​​Traditional Galvanized Gabions​
​Corrosion Resistance​PVC layer blocks salt/chemical ingressProne to rust in humid environments
​Installation Cost​$8–12/m² (unskilled labor, no tools)$6–10/m² but requires tension tools
​Maintenance​Near-zero (no coating repairs needed)Annual inspections + touch-ups
​Aesthetic Flexibility​Dark green blends with landscapesMetallic appearance requires painting
