Industrial-Grade 3.0mm PVC-Coated Hexagonal Gabion Mesh – Double Twist Design for Heavy-Duty Erosion Control & Slope Stabilization

03/07/2025

Gabion structures, crafted from tough hexagonal wire mesh, are designed for diverse applications. Key offerings include:

PVC-Coated Double Twist 3.0mm Gabion Mesh

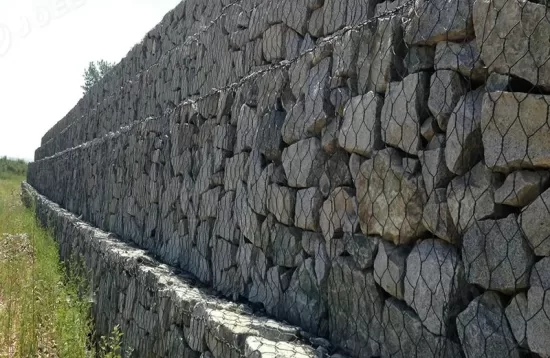

Gabion Boxes: Modular units filled with rocks, stones, or recycled concrete, ideal for constructing retaining walls and controlling erosion.
Gabion Mattresses: Flat, low-profile units that stabilize watercourses and prevent scouring.
Gabion Rockfall Netting: Protective barriers to reduce rock and debris spills on slopes.
Gabion Sacks: Flexible containers used in hydraulic engineering for flow regulation.

Technical Parameters:

Wire Diameter (mm)	Tolerance (mm)	Min. Zinc Coating (g/m²)
2.0	±0.05	215
2.2	±0.06	230
2.4	±0.06	230
2.7	±0.06	245
3.0	±0.07	255
3.4	±0.07	265
3.9	±0.07	275

Specifications:
Mesh Sizes: 80×100mm, 100×120mm (tolerance: +16%/-4).
Dimensions: Lengths 1.5–4m, widths 1m, heights 0.5–1m.
Diaphragms: Optional internal partitions for structural reinforcement.

Applications:
Retaining walls, riverbank revetments, and coastal protection.
Rockfall mitigation, bridge abutments, and culvert protection.
Landscaping, weirs, and hydraulic engineering projects.

Advantages:
Flexibility: Adapts to ground movement and settlement.
Durability: PVC coating enhances corrosion resistance.
Permeability: Reduces hydrostatic pressure and waterlogging.
Eco-Friendly: Supports vegetation growth and uses recycled fill materials.
