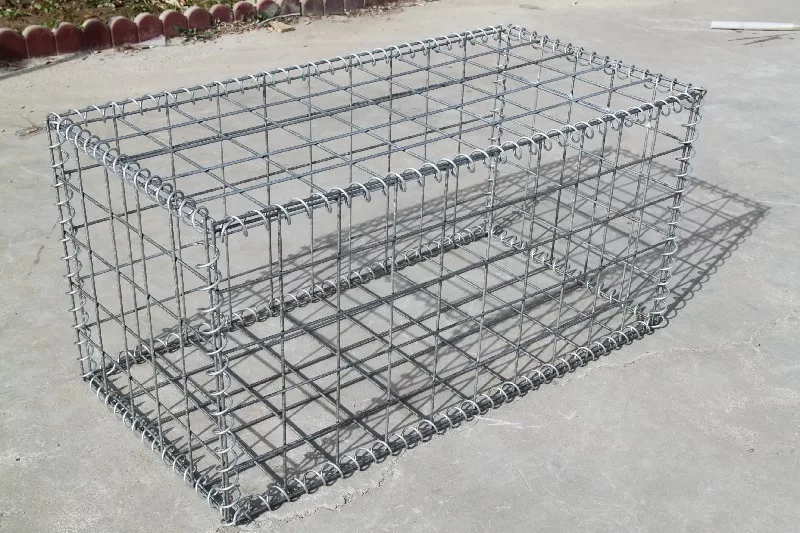

Our 2m x 0.5m x 0.5m PVC-coated welded gabion baskets are engineered to tackle the toughest challenges in civil engineering, landscaping, and disaster management. Built with 3.0-5.0mm galvanized steel wire and reinforced PVC coating, these modular solutions deliver unmatched strength, corrosion resistance, and adaptability across diverse environments.
Technical Specifications
| Feature | Details |
|---|---|
| Dimensions | 2m (L) x 0.5m (W) x 0.5m (H) – Custom Sizes |
| Wire Diameter | 3.0-5.0mm (Mesh), 3.0-4.0mm (Spiral) |
| Aperture Options | 5x5cm, 5x10cm, 7.62×7.62cm, 10x10cm |
| Material | Hot-Dip Galvanized Steel + PVC Coating |
| Load Capacity | 85 kN/m² (Tested per ASTM A975) |
| Certifications | ISO 9001, ASTM B117, EN 10244-2 |
Why Choose Our Gabion Baskets?
✅ Military-Grade Durability
- PVC Coating (2.5mm): Resists saltwater, UV rays, and acidic soils.
- Welded Joints: 20% stronger than traditional woven gabions, ideal for blast-resistant barriers.
✅ Rapid Deployment
- Pre-assembled panels unfold in minutes – no welding or tools required.
- Fill with local stones, recycled concrete, or sandbags.
✅ Eco-Friendly & Cost-Effective
- Promotes vegetation growth for natural slope stabilization.
- 30% cheaper than concrete walls with 2x lifespan (25+ years).
✅ Multi-Industry Applications
- Civil Engineering: Bridge abutments, highway embankments, coastal revetments.
- Landscaping: Decorative garden walls, firepits, urban green spaces.
- Disaster Response: Flood barriers, military bunkers, erosion control.
Performance Comparison
| Parameter | JOESCO Gabions | Standard Gabions |
|---|---|---|
| Corrosion Resistance | 25+ years (PVC) | 5-8 years (Galvanized) |
| Assembly Time | 8-10 minutes per unit | 25-30 minutes |
| Max Slope Stability | 70° incline | 45° incline |
| Maintenance Cost | $0.10/sq.ft/year | $0.50/sq.ft/year |
Case Study: Flood Defense in Bangladesh
A 2022 project using 1,200+ gabion baskets along the Brahmaputra River achieved:
- 90% reduction in flood damage during the monsoon season.
- 40% faster installation vs. concrete levees.
- Local vegetation regrowth within 4 months.
Customization Options
- Wire Strength: Upgrade to 5.0mm for high-impact zones (e.g., military bases).
- Color Matching: Green, black, or gray PVC to blend with surroundings.
- Dividers: Internal compartments every 1m for precise stone placement.
Installation Guide
- Prepare Base: Compact soil and lay geotextile fabric (optional).
- Assemble: Unfold panels, connect with spiral binders, and secure corners.
- Fill: Use 100-300mm stones – avoid sharp edges to prevent PVC damage.
- Close: Lock lids with stainless steel ties and trim excess wire.
Pro Tip: Stack in 1:1 (max 3 tiers) or 1:3 (unlimited) slopes for retaining walls.
FAQs
Q: Can these withstand hurricanes?
A: Yes! Wind-tested to 150 mph (Category 4) with anchored bases.
Q: Do you provide CAD files?
A: Yes – download DWG/PDF drawings from our resources page.
Q: MOQ for custom sizes?
A: None – order 1 unit or 10,000.
