River training projects demand durable, permeable, and eco-friendly solutions to combat erosion, stabilize banks, and protect critical infrastructure. JOESCO galvanized gabion mattresses (also known as Reno mattresses) are engineered to meet these hydraulic challenges. Manufactured to ASTM A975, EN 10223-3, and ISO9001 standards, our mattresses provide flexible, high-strength protection for riverbeds, embankments, and water control structures. This guide covers technical specifications, installation best practices, and why engineers specify JOESCO for critical water infrastructure.
Product Overview & Specifications

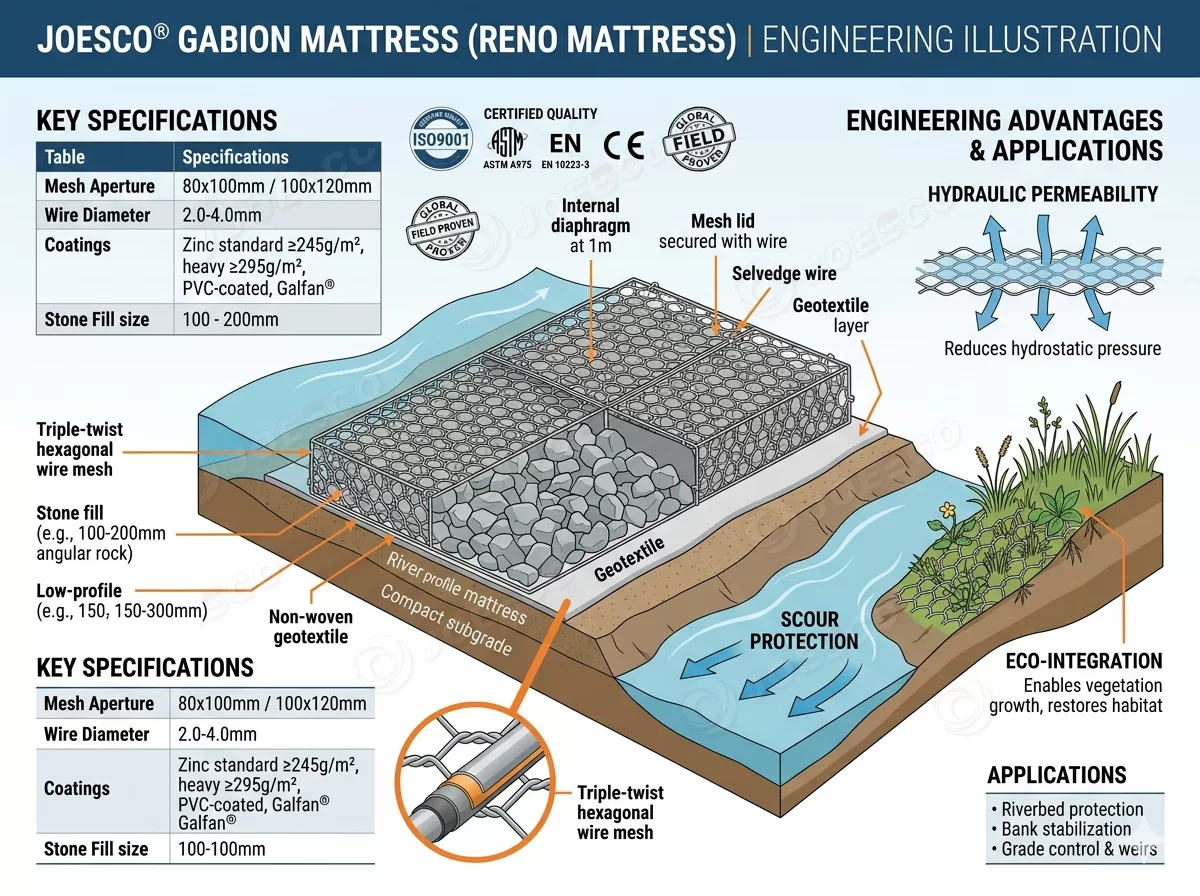

JOESCO gabion mattresses feature triple-twist hexagonal wire mesh filled with durable stone. Their low profile (150–300mm height) creates monolithic, permeable mats ideal for high-energy hydraulic environments.
Parameter | JOESCO Standard Specification |
|---|---|
Mesh Aperture | 80×100mm / 100×120mm |
Wire Diameter | 2.0–4.0mm (selvedge +0.5mm) |
Zinc Coating | ≥245g/m² (standard) / ≥295g/m² (heavy duty) |
Enhanced Options | PVC-coated (0.5mm min) or Galfan® for aggressive/marine zones |
Stone Fill | 100–200mm angular, sound rock (≥1.5× mesh aperture) |
All units include internal diaphragms at 1m or 2m intervals for structural rigidity and arrive flat-packed to optimize container loading.
Key Applications in River Training
- Riverbed & Scour Protection: Shields bridge foundations, culverts, and pipeline crossings from high-velocity flow erosion.
- Bank Stabilization: Prevents lateral erosion while allowing native riparian vegetation to establish through mesh voids.
- Grade Control & Weirs: Low-head structures that tolerate foundation settlement without cracking or catastrophic failure.
- Flow Diversion Walls: Guides channel flow away from vulnerable zones while dissipating hydraulic energy naturally.
Engineering Advantages
✅ Hydraulic Permeability: Allows water exfiltration, reducing hydrostatic pressure and preventing failure during rapid drawdown.
✅ Flexibility & Settlement Tolerance: Triple-twist mesh accommodates ground movement and minor scour without structural damage.
✅ Eco-Integration: Voids enable vegetation growth, restoring habitat and enhancing long-term bank stability.
✅ Lifecycle Cost Efficiency: 30–40% lower total cost vs. concrete. No curing required; weather-tolerant installation accelerates project timelines.
✅ Logistics Optimized: Flat-pack design cuts shipping volume by ~70%, significantly reducing freight and on-site handling costs.
✅ Flexibility & Settlement Tolerance: Triple-twist mesh accommodates ground movement and minor scour without structural damage.
✅ Eco-Integration: Voids enable vegetation growth, restoring habitat and enhancing long-term bank stability.
✅ Lifecycle Cost Efficiency: 30–40% lower total cost vs. concrete. No curing required; weather-tolerant installation accelerates project timelines.
✅ Logistics Optimized: Flat-pack design cuts shipping volume by ~70%, significantly reducing freight and on-site handling costs.
Installation & Design Highlights
Proper execution ensures maximum design life and hydraulic performance:
- Subgrade Preparation: Compact to ≥95% Proctor density; install non-woven geotextile (200–300g/m²) where soil migration is a concern.
- Assembly & Binding: Unfold units, secure side panels, install diaphragms, and continuously bind adjacent mattresses for monolithic behavior.
- Stone Placement: Fill in three lifts, hand-placing stones to minimize voids. Overfill by 25–50mm to account for settlement, then tension and wire the lid securely.
Design Considerations: Standard galvanized mesh resists flow velocities up to 4.0 m/s (PVC/Galfan up to 5.5–6.0 m/s). Extend mattress protection 1.5–2.0× beyond calculated scour depth. Maintain side slopes ≤2:1 for standard units. Always verify local hydraulic standards and secure environmental permits before in-stream work.
Why Choose JOESCO?
- Certified Quality: ISO9001:2015 manufacturing with in-house tensile, coating weight, and mesh aperture verification. Full ASTM/CE compliance.
- Global Field Proven: Successfully deployed across Southeast Asia, Middle East, Africa, and Europe for flood control and channel training.
- Engineering Support: Free hydraulic design review, CAD details, and on-site technical supervision for projects >5,000 m².
- Reliable Supply Chain: 500,000 m²/month production capacity, 15–20 day standard lead times, and flexible Incoterms (FOB/CIF/DDP).
Case Snapshot: JOESCO supplied 45,000 m² of PVC-coated mattresses for Mekong Delta flood control. Post-installation monitoring over 5 years shows zero erosion incidents, 40% lifecycle savings vs. concrete, and natural vegetation establishment within 18 months.
