4.0mm High-Tensile Steel | 50×50mm / 75×75mm Aperture | Dual-Layer Corrosion Protection | ASTM F2781 & ISO 9001 Certified
📋 Product Overview

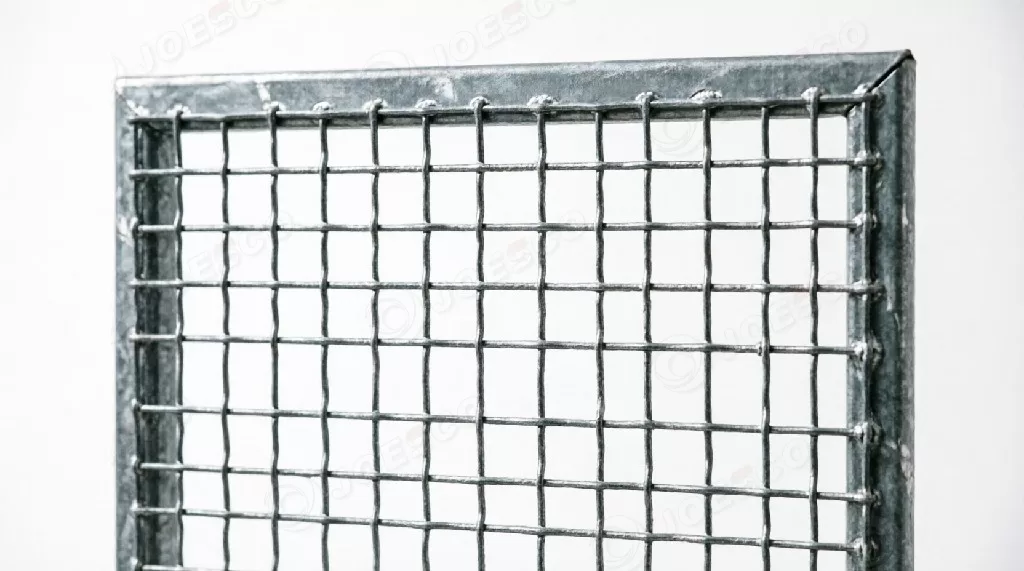

Engineered for maximum intrusion deterrence and long-term perimeter integrity, JOESCO’s Heavy-Duty Welded Mesh Security Fencing combines precision manufacturing with robust material science. Each panel features automated resistance-welded joints, a high-zinc hot-dip galvanized core, and a UV-resistant polyester powder coating—delivering superior resistance against cutting, climbing, impact, and environmental degradation.
Ideal for high-risk facilities where security cannot be compromised, this fencing system meets stringent international standards and integrates seamlessly with access control, surveillance, and detection technologies.
⚙️ Technical Specifications
Parameter | Specification |
|---|---|
Wire Diameter | 4.0mm – 5.0mm high-tensile steel wire (ASTM A82/A496) |
Mesh Aperture | 50×50mm (standard) / 75×75mm (optional) |
Panel Dimensions | Height: 2.0m – 4.0m |
Surface Treatment | Hot-dip galvanized (≥275g/m² zinc) + Polyester powder coating (60–80μm, RAL color options) |
Welding Process | Automated resistance welding; joint strength ≥95% of base wire |
Corrosion Resistance | Salt spray test >1,000 hours (ASTM B117) |
Top Security Options | 45° inward angled top / Y-post bracket / Razor wire integration / Anti-climb barbed tape |
Post System | H-section or square hollow steel posts (60×60mm – 100×100mm), pre-drilled for rapid assembly |
Foundation Compatibility | Base plate fixation / Direct concrete embedment / Ground spike option |
Certifications | ASTM F2781, ISO 9001:2015, CE, EN 10223-3 |
🎯 Key Advantages
🔹 Superior Structural Rigidity
Precision-welded mesh panels resist deformation under impact or attempted breach. The rigid grid pattern eliminates footholds, significantly deterring climbing attempts.
Precision-welded mesh panels resist deformation under impact or attempted breach. The rigid grid pattern eliminates footholds, significantly deterring climbing attempts.
🔹 Dual-Layer Corrosion Defense
A thick zinc galvanization layer provides cathodic protection, while the thermoset powder coating shields against UV radiation, chemical exposure, and abrasive weather—ensuring 20+ years of service life in coastal or industrial environments.
A thick zinc galvanization layer provides cathodic protection, while the thermoset powder coating shields against UV radiation, chemical exposure, and abrasive weather—ensuring 20+ years of service life in coastal or industrial environments.
🔹 Rapid, Modular Installation
Standardized panel sizes and pre-fabricated post accessories enable fast on-site assembly. Compatible with tension wires, brace bands, and tamper-proof fasteners for secure, wobble-free deployment.
Standardized panel sizes and pre-fabricated post accessories enable fast on-site assembly. Compatible with tension wires, brace bands, and tamper-proof fasteners for secure, wobble-free deployment.
🔹 Scalable Security Integration
Designed to accommodate electric pulse systems, vibration sensors, fiber-optic detection cables, and CCTV mounting brackets—supporting layered, intelligent perimeter protection strategies.
Designed to accommodate electric pulse systems, vibration sensors, fiber-optic detection cables, and CCTV mounting brackets—supporting layered, intelligent perimeter protection strategies.
🔹 Aesthetic Flexibility
Available in 12+ RAL colors (e.g., Dark Gray RAL 7016, Forest Green RAL 6009, Black RAL 9005) to blend with architectural requirements or corporate branding.
Available in 12+ RAL colors (e.g., Dark Gray RAL 7016, Forest Green RAL 6009, Black RAL 9005) to blend with architectural requirements or corporate branding.
🌍 Ideal Applications
✅ Correctional Facilities – Perimeter fencing for prisons, detention centers, and juvenile facilities
✅ Transportation Hubs – Airport boundaries, runway security, rail yards, and port terminals
✅ Critical Infrastructure – Power substations, water treatment plants, telecommunications sites
✅ Defense & Government – Military bases, border control zones, embassy compounds
✅ Commercial High-Security – Data centers, pharmaceutical warehouses, high-value logistics parks
✅ Transportation Hubs – Airport boundaries, runway security, rail yards, and port terminals
✅ Critical Infrastructure – Power substations, water treatment plants, telecommunications sites
✅ Defense & Government – Military bases, border control zones, embassy compounds
✅ Commercial High-Security – Data centers, pharmaceutical warehouses, high-value logistics parks
📦 Packaging & Delivery
- Panels bundled with protective corner guards and weather-resistant wrapping
- Posts and accessories packed in steel-framed crates for ocean freight
- Custom labeling with project codes, installation diagrams, and QR-linked technical docs
- Lead time: 15–25 days after order confirmation (FOB Tianjin / CIF available)
📥 Request Support
🔹 Download: [Technical Datasheet PDF] | [Installation Guide] | [Corrosion Test Report]
🔹 Customize: Contact our engineering team for aperture, height, or coating modifications
🔹 Quote: Submit project specifications for a tailored solution within 24 hours
🔹 Customize: Contact our engineering team for aperture, height, or coating modifications
🔹 Quote: Submit project specifications for a tailored solution within 24 hours
➡️ CTA: Secure Your Perimeter Today – Request a Free Technical Consultation
